Cutting by laser Trumpf TruLaser 3030

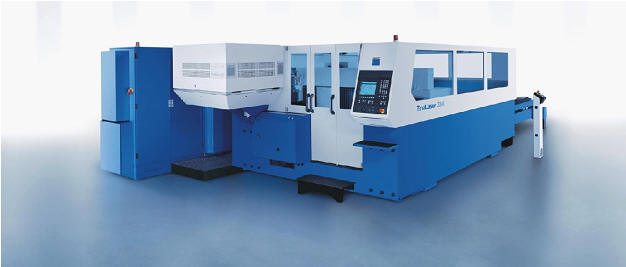

Trumpf TruLaser 3030

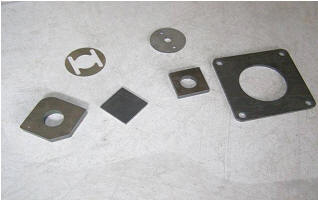

Laser cutting of sheet metal

  • High quality surface of the edge, no need for finishing after laser cutting
  • The smallest programmable dimension 0,01mm
  • Maximum position error 0,1mm
  • Maximum size of the sheet metal 1500x3000 mm

Maximum thickness of sheet metal



Construction steel 15 mm
Stainless - steel 6 mm
Aluminium 5 mm

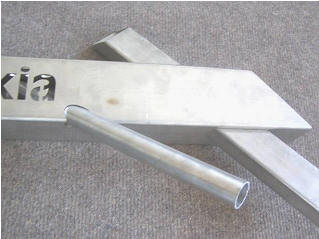

Cutting of pipes and profiles

  • Cutting of pipes, profiles, their junctions or their conjunctions using additional device RotoLas
  • Minimum diameter of a pipe or profile: 20mm
  • Maximum diameter of a pipe or profile: 400mm

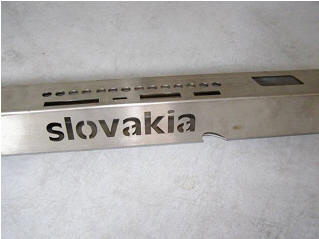

Inscription by laser

  • It is possible to engraves labels, inscriptions, logos on the products cut by laser .

Cutting is done on basis of a technical documentation provided by the customer in format .dwg or .dxf.

On basis of pre-defined criteria we can also draw appropriate technical documentation for the customer.
